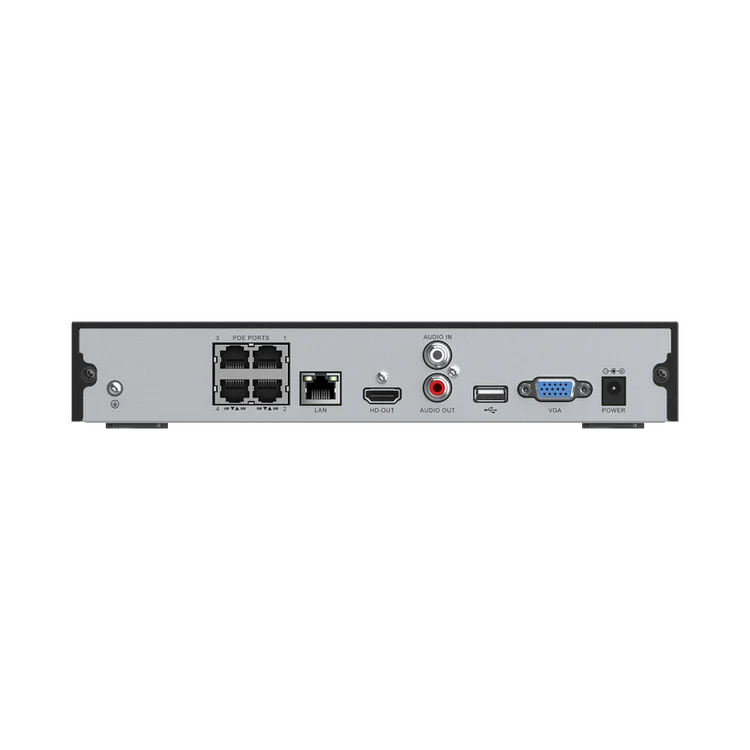

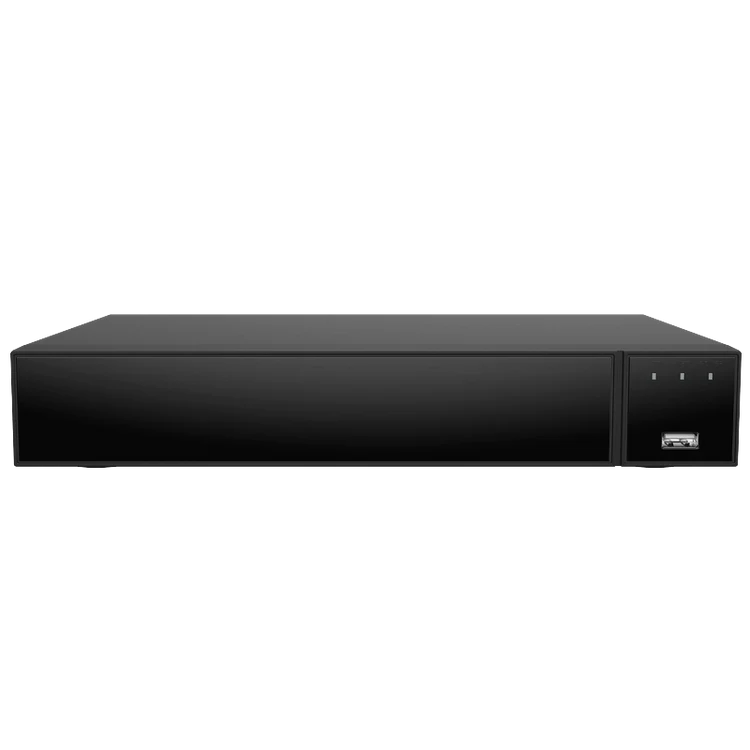

L-Series 4K Ultra HD 4-Channel NDAA-Compliant IP Network Video Recorder with 1 SATA Hard Drive Bay (NVR-1B4L)
- Records IP Cameras up to 4K (8MP) Resolution
- Max 4 Channel IP Camera Connections w/ 4 POE Ports
- Simple and straightforward user interface
- Max 80Mbs Recording Bandwidth
- 1 SATA HDD interface up to 10TB
- NDAA-Compliant
- ONVIF Compatible
NVR-1B4L
Recorder
4K Ultra HD
Up to 4K Ultra HD Resolution
1 SATA HDD
Up to 10TB
4 POE Ports
Easy Plug-and-Play
2 Year Warranty
Warranty Information
Video recorders are the heart of your cctv system. With the NVR-1B4L you can be sure that your security cameras are in good hands. This IP video recorder is perfect for small installations with up to 4 security cameras.
The NVR-1B4L is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Easy Plug-and-Play Interface
Connect up to 4 IP cameras to the integrated Power-over-Ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each security camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology.
This all-in-one ethernet cable provides both power and video transmission to the camera up to 300ft. This means that you won't need to run a separate power cable to your cameras, making installation much easier!
Recording Schedules
If you want 24/7 video recording, the NVR-1B4L NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 1 Hard Drive/s, Up to 10TB.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
| SPECIFICATION | |
|---|---|
| IP Channels | 4 |
| Max Resolution | 4K Ultra HD |
| Max Incoming Bandwidth | 80Mbps |
| Max Outgoing Bandwidth | 80Mbps |
| Video Compression | H265 / H264 / H265+ / H264+ |
| Hard Drive Slots | 1 |
| Hard Drive Capacity | Up to 10TB |
| Audio I/O | 1 input / 1 output |
| Onvif Compatible | Yes |
| Power Supply | DC48V |
| Power Consumption | ≤ 10W |
| Operating Temperature | 14°F ~ 122°F |
| Dimensions | 10.24 × 9.06 × 1.69 in |
| Weight | 2.9lbs |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| Search Tool | Search for online devices. | v1.5.4.241107 | Download |
| VMS247 | View multiple cameras and NVRs from your Windows PC. | v26.6.1.260509 | Download |
