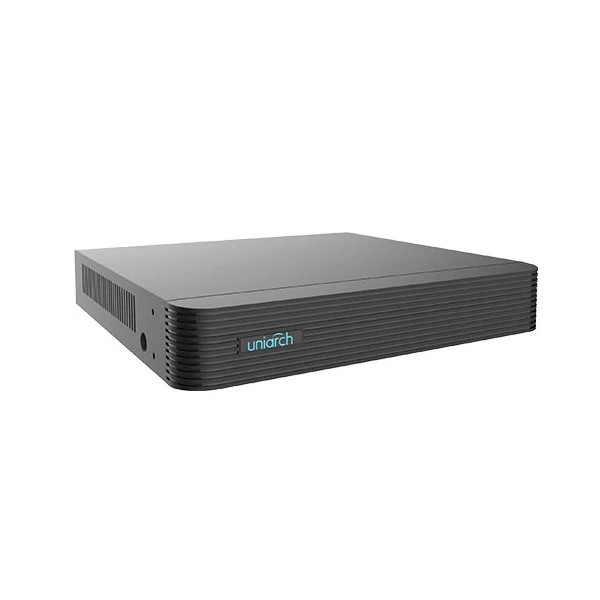

Uniarch by Uniview 4K UltraHD 8MP NDAA-Compliant 4-Channel IP Network Video Recorder with 4 PoE Ports and 1 SATA Hard Drive Bay (NVR-104E2-P4)
- Supports Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Supports 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 4K UltraHD 8MP resolution recording
- 1 SATA HDD slot up to 6TB
- Supports cloud upgrade
NVR-104E2-P4
Recorder
4K Ultra HD
Up to 4K Ultra HD Resolution
1 SATA HDD
Up to 6TB each
4 POE Ports
Easy Plug-and-Play
1 Year Warranty
Warranty Information
Video recorders are the heart of your cctv system. With the NVR-104E2-P4 you can be sure that your security cameras are in good hands. This IP video recorder is perfect for small installations with up to 4 security cameras.
The NVR-104E2-P4 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Easy Plug-and-Play Interface
Connect up to 4 IP cameras to the integrated Power-over-Ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each security camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology.
This all-in-one ethernet cable provides both power and video transmission to the camera up to 300ft. This means that you won't need to run a separate power cable to your cameras, making installation much easier!
Recording Schedules
If you want 24/7 video recording, the NVR-104E2-P4 NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 1 Hard Drive/s, Up to 6TB each.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
Local & Remote Viewing
This NVR can be used with or without being connected to the Internet. You can view your NVR locally by connecting it to any HD-TV or monitor. If connected to the internet, you are also able to view your NVR remotely by downloading the following app to your smart device.
| SPECIFICATION | |
|---|---|
| IP Channels | 4 |
| Max Resolution | 4K Ultra HD |
| Max Incoming Bandwidth | 40Mbps |
| Max Outgoing Bandwidth | 50Mbps |
| Video Compression | Ultra H.265|H.265|H.264 |
| Hard Drive Slots | 1 |
| Hard Drive Capacity | Up to 6TB each |
| Synchronus Playback | 4ch |
| Audio I/O | 0ch / 1ch |
| Onvif Compatible | Yes |
| Power Supply | DC48V |
| Power Consumption | ≤9 W (without HDD) |
| Operating Temperature | +14°F ~ +131°F (-10°C ~ + 55°C) |
| Dimensions | 10.0" × 8.5"×1.7" (255mm ×215mm× 42mm) |
| Weight | 2.65 lb (≤1.2kg) |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| Video Management Software | Unified management for IP cameras, NVRs. | v1101.1.0.0 | Download 32-bit |
| Video Management Software | Unified management for IP cameras, NVRs. | v1101.1.0.0 | Download 64-bit |
| Video Management Software | Unified management for IP cameras, NVRs. | v1101.1.0.0 | Download |
