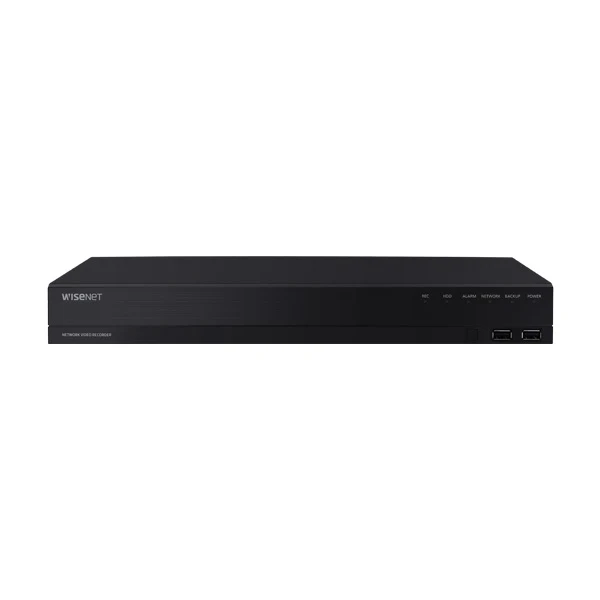

Hanwha Wisenet A series 4K NDAA Compliant 16-Channel IP Network Video Recorder with 2 SATA Hard Drive Bays (ARN-1610S)
Note on Hanwha Warranty: Hanwha has recently updated their warranty from three years to five years. This only applies to products purchased after July 1, 2023.
- Up to 16 channels @ 4K UHD 8MP resolutiond
- H.265, H.264, MJPEG codec supported
- 80Mbps network camera recording
- Plug & play by 16 PoE ports
- Maximum 2 HDDs (up to 6Tb each) supported
- HDMI/VGA local monitor
- P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
ARN-1610S
Recorder
4K Ultra HD
Up to 4K Ultra HD Resolution
2 SATA HDD
Up to 6TB each
16 POE Ports
Easy Plug-and-Play
3 Year Warranty
Warranty Information
Video recorders are the heart of your cctv system. With the ARN-1610S you can be sure that your security cameras are in good hands. This IP video recorder is perfect for medium-large installations with up to 16 security cameras.
The ARN-1610S is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.
Easy Plug-and-Play Interface

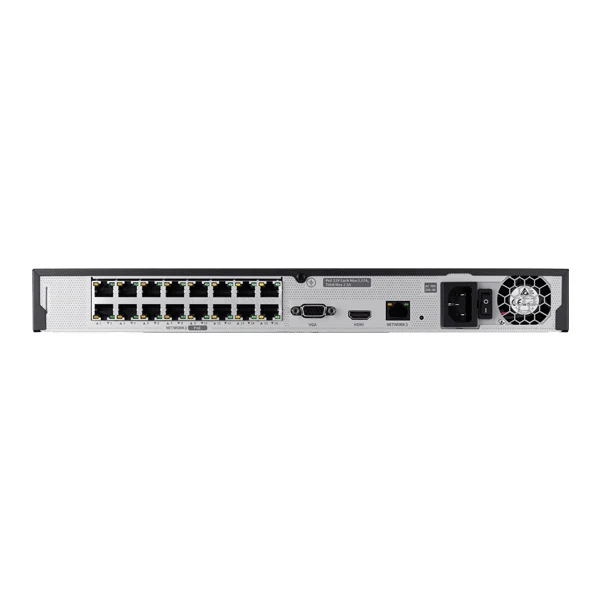

Connect up to 16 IP cameras to the integrated Power-over-Ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each security camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology.
This all-in-one ethernet cable provides both power and video transmission to the camera up to 300ft. This means that you won't need to run a separate power cable to your cameras, making installation much easier!
Recording Schedules
If you want 24/7 video recording, the ARN-1610S NVR is a great choice. You can rest assured that your surveillance system never misses a moment with it's ability to add 2 Hard Drive/s, Up to 6TB each.
You can also setup custom recording schedules based on days and times of the week, or based on events such as motion detection.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
| SPECIFICATION | |
|---|---|
| IP Channels | 16 |
| Max Resolution | 4K Ultra HD |
| Max Incoming Bandwidth | 80Mbps |
| Max Outgoing Bandwidth | 80Mbps |
| Video Compression | H.265|H.264 |
| Hard Drive Slots | 2 |
| Hard Drive Capacity | Up to 6TB each |
| Synchronus Playback | 4ch |
| Onvif Compatible | Yes |
| Power Supply | 100-240VAC |
| Power Consumption | Max 188.2W (2HDD, PoE On) |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) |
| Dimensions | W370.0 x H44.0 x D320 mm |
| Weight | ~ 6.3 lbs |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| Wisenet Viewer | Light NVR/DVR Management Software | v1.03.00 | Download |
| Wisenet WAVE | Wisenet WAVE VMS | v5.0.0 | Download |
| Wisenet Device Manager | A custom program that helps the user to manage multiple IP network devices. This program discovers the Hanwha cameras on the network and easily allows the user to modify their IP addresses. The Wisenet Device Manager also lets the user make groups, and save templates to maximize programming capabilities on large installations. | v2.5.2 | Download |
| Wisenet Viewer | Light NVR/DVR Management Software | v1.03.00 | Download |
| Wisenet WAVE | Wisenet WAVE VMS | v5.0.0 | Download |
